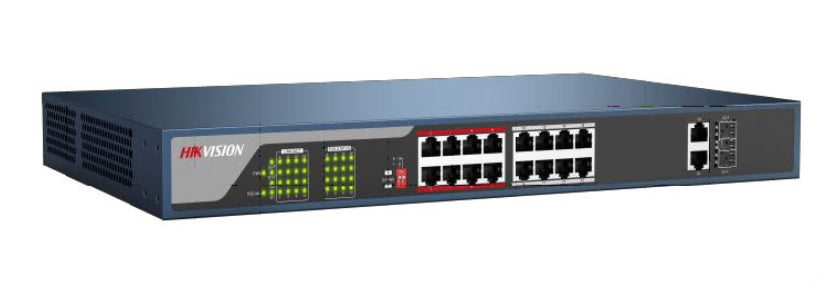

HIKVISION 16-ports 100Mbps Unmanaged PoE Switch (DS-3E0318P-E)
Product Description
- IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant
- 16x10/100Mbps Auto-MDIX PoE ports
- Provides up to 30 watts per PoE port
- PoE power budget 230W
- 4 KV surge protection for PoE ports
- IEEE 802.3x flow control support
- Plug-and-play installation
- 2 Gbps switching fabric
- 75 MbitsRAM Data Buffer
- 4K MAC address entries
- Sturdy metal enclosure
Specification
Ports
Network Ports: 18
PoE Port: 16, 10/100Mbps RJ45 ports
Uplink Port: 2, 1000M Combo Port
Standard
Network Protocol: IEEE802.3,802.3u,802.3x, 802.3af, 802.3at
Performance
Switching Capacity: 7.2Gbps
Max. Forwarding Rate: 5.36Mpps
High Priority Ports: Ports 1-8
Forwarding Mode: Store-and-forward
MAC Address Table: 4k
Flow Control: IEEE802.3x full duplex
Power Over Ethernet
PoE Standard: IEEE802.3af, IEEE802.3at
PoE Power Budget: 230W
Working Mode: Extend On:250m,10M, CAT 5e
Extend Off:100m
General
Power Supply: 100-240V AC, 50/60Hz
Power Consumption: ≤250W
Surge Protection: 4KV
Working Temperature: Temperature: 0℃-40℃
Working Humidity: Humidity: 10%-90%, non-condensing
Storage Temperature: Temperature: -40℃-70℃
Storage Humidity: Humidity: 5%-90%, non-condensing
Weight: 3.72kg
Dimension: 440mm*285mm*43mm
